ViewSonic - PRO8510L 5200 Lumens XGA HDMI Lens Shift Projector

$1,923.96 $2,598.00

SKU: PRO8510L
MODEL: PRO8510L 5200 Lumens XGA HDMI Lens Shift Projector
Product Description Delivering 1024 x 768 resolution and 5200 lumens of brightness, the ViewSonic LightStream Pro8510L is the ideal XGA projector for professional installations, large venues, and business and education environments. With its 1.6x optical zoom, centered lens, vertical lens shift, and HV keystoning, the Pro8510L provides extreme flexibility even...
Quantity
Add to Wishlist

Product Description


Delivering 1024 x 768 resolution and 5200 lumens of brightness, the ViewSonic LightStream Pro8510L is the ideal XGA projector for professional installations, large venues, and business and education environments. With its 1.6x optical zoom, centered lens, vertical lens shift, and HV keystoning, the Pro8510L provides extreme flexibility even in the most challenging installations. The Pro8510L boasts a sleek top cover design for quick lamp and accessory access, while an intuitive PortAll compartment accommodates additional accessories such as an HDBT receiver, wireless streaming device, or PC stick. The cable management hood hides unsightly cables, and a 4-in-1 power button serves as a central point for LED notifications. Moreover, four HDMI ports and additional audio and video ports allow for extensive connectivity to handle multiple devices without the need to switch cables. Powered by SuperColor technology for beautiful image reproduction, and SonicExpert technology for incredibly clear sound, the Pro8510L delivers a professional audiovisual performance.

Product Details

5,200 Lumen Brightness

Packed with 5,200 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.

Vertical Lens Shift with Centered Lens

A vertical lens shift feature offers up and down adjustments of the projection lens for flexible placement in challenging installations. What’s more, a centered lens design makes this projector ideal for replacing existing centered lens installations – making it unnecessary to move or reinstall existing ceiling mounts or projection screens.

PortAll: Discreet Wireless Streaming

This projector includes ViewSonic’s exclusive PortAll feature—a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless dongle, or lets you connect to other devices via an HDMI cable. What’s more, an optional HDBT adapter lets you discreetly stream multimedia content from set-top boxes, Blu-ray players, AV receivers and more via an HDBT receiver.

4 HDMI Inputs

Four HDMI inputs allow you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for the ultimate true high-definition experience.



Product Specifications


Display
TYPE
DLP
RESOLUTION TYPE
XGA
RESOLUTION
1024 x 768
BRIGHTNESS (ANSI LUMENS)
5,200
THROW DISTANCE
2.3 – 37.3 ft. / 0.86 – 11.36 m
THROW RATIO
1.41 ~ 2.25
DISPLAY SIZE (IN.)
30 - 300 in. / 0.76 - 7.62 m
KEYSTONE
Vertical (± 30º) / Horizontal (± 30º)
LENS
1.6x Manual optical zoom / manual optical focus
LIGHT SOURCE (WATT)
370
LIGHT SOURCE LIFE, NORMAL (HOURS)
2000
LIGHT SOURCE LIFE, DYNAMIC ECO-MODE (HOURS)
2500
COLOR DEPTH
30 bits, 1.07B Color (10+10+10)
ASPECT RATIO
4:3 (native)

Video Signal
FREQUENCY HORIZONTAL
15–100KHz
FREQUENCY VERTICAL
24–120Hz

Compatibility
PC RESOLUTION (MAX)
Up to 1920x1080
MAC® RESOLUTION (MAX)
Up to 1920x1080 (may require MAC adapter)

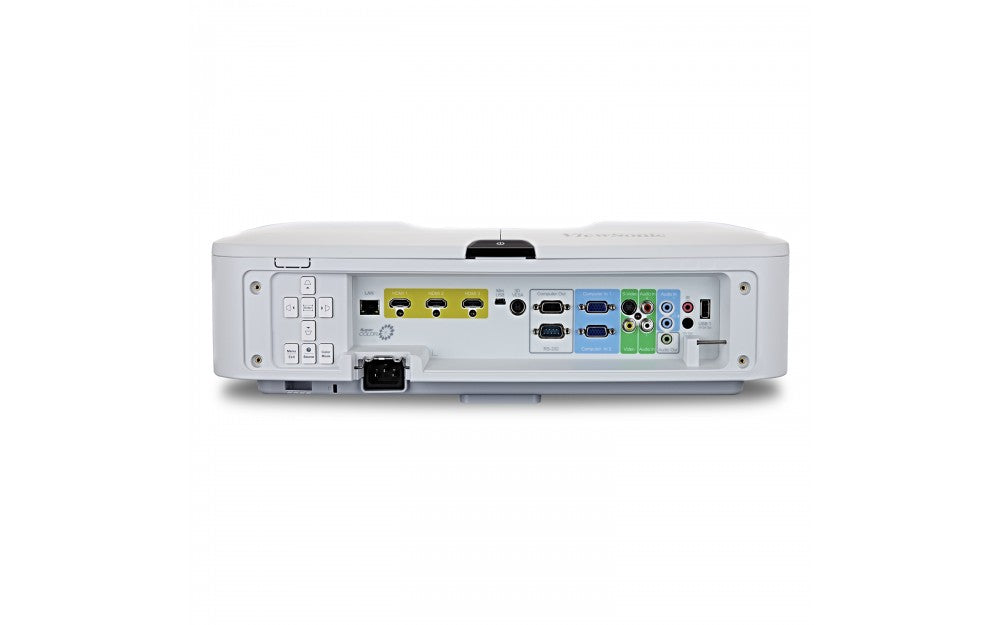

Connector
USB 2.0 TYPE A
1
ETHERNET LAN (RJ45)
1
3.5MM 12V TRIGGER
1
3.5MM AUDIO OUT
1
3.5MM AUDIO IN
2
CONTROL (RS-232)
1
HDMI 1.4
3
HDMI MHL
1
VGA IN
2
VGA OUT
1
COMPOSITE RCA VIDEO IN
1
S-VIDEO IN
1
MINI USB
1
MICRO USB
1
RCA AUDIO IN (L/R)
1

Audio
INTERNAL SPEAKERS
10W (x2)

Power
VOLTAGE
100~240VAC (Auto Switching), 50-60Hz (universal)

CONSUMPTION (MAX)
570W
STAND-BY
<0.5W

Controls
PHYSICAL CONTROLS
Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

ON SCREEN DISPLAY
Display, Image, Power Management, Basic, Advanced, System, Information

Operating Conditions
TEMPERATURE
32-104º F (0 - 40º C)
HUMIDITY (NON-CONDENSING)
0-90%

Noise Level
ECO-MODE
33dB

Additional Hardware
KENSINGTON LOCK SLOT
1

Dimensions (imperial) (wxhxd)
PACKAGING (IN.)
22.72 x 21.14 x 10.24
PHYSICAL (IN.)
19.55 x 12.45 x 5.5
Dimensions (metric) (wxhxd)
PACKAGING (MM)
577 x 537 x 260
PHYSICAL (MM)
496.5 x 316.2 x 139.8

General
REGULATIONS
Mexico Energy test/Registration, EAC, TUV-S Mark (Argentina), India BIS, FCC, CE, EMC, CB, CCC, RoHS, REACH, SVHC, WEEE, ErP, Mexico NOM, cTUVus, PSB, RCM, CECP

Manufacturer's Warranty Applies
