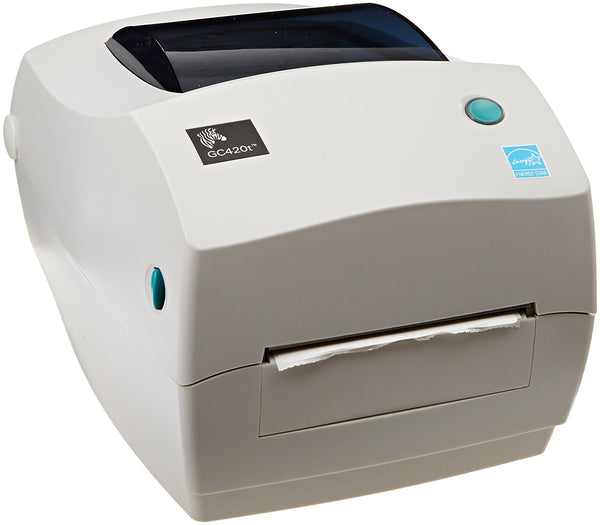

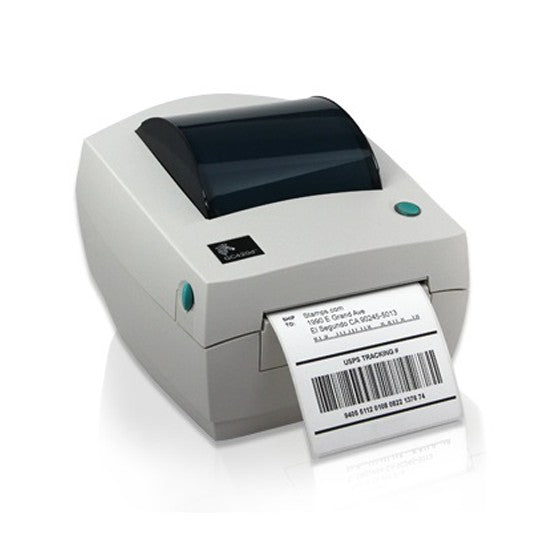

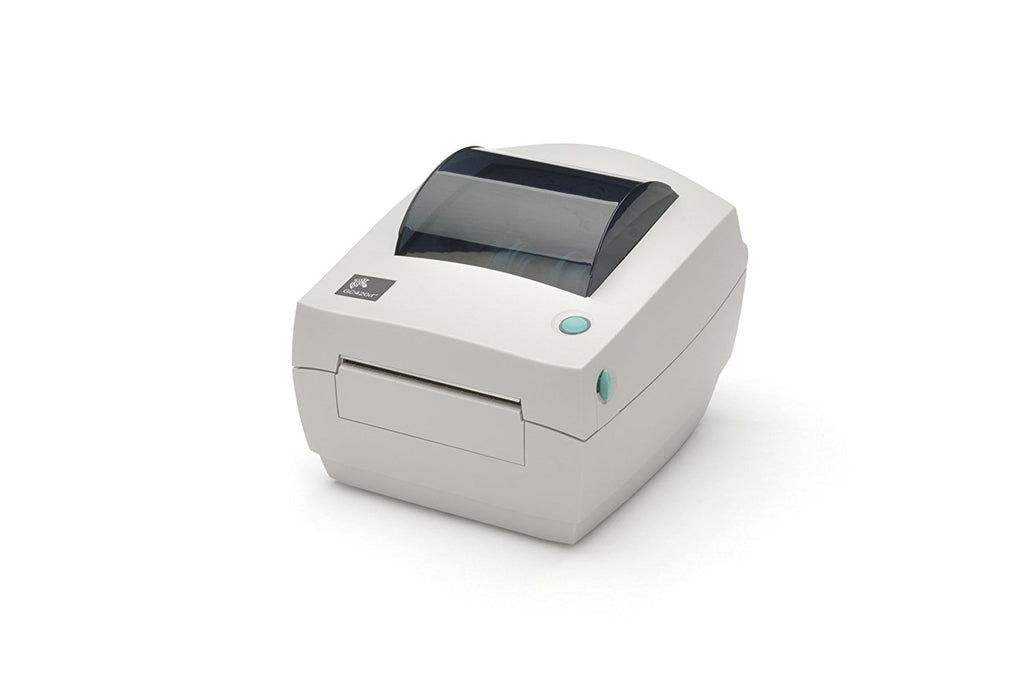

Zebra-GC420 TT Printer Desktop Series 3

$122.36 $133.04

SKU: Z1AE-GSER-3C0
MODEL: Zebra-GC420 TT Printer Desktop Series 3
Product Description Affordability Meets High-Quality Zebra’s feature-rich, competitively priced GC420 desktop printer brings Zebra quality, durability and reliable performance to many low- to medium-volume, direct thermal and thermal transfer printing applications. Product Details The GC420 printer’s compact, space-saving design contains a powerful 32-bit processor for fast label throughput, and 8 MB Flash...
Quantity
Add to Wishlist

Product Description

Affordability Meets High-Quality Zebra’s feature-rich, competitively priced GC420 desktop printer brings Zebra quality, durability and reliable performance to many low- to medium-volume, direct thermal and thermal transfer printing applications.

Product Details

The GC420 printer’s compact, space-saving design contains a powerful 32-bit processor for fast label throughput, and 8 MB Flash memory for increased storage of fonts and graphics. The GC420 supports media widths up to 4.25” for standard desktop applications. It also includes both EPL2 and powerful ZPL II® programming languages—making it easy to integrate with other Zebra printers. Peeler/dispenser option extends the GC420 printer’s versatility.

• 32 bit RISC processor

• Programming languages: EZPL (ZPL, ZPL II and EPL2)

• Triple connectivity: USB, parallel and serial

• Print methods: Direct thermal and thermal transfer, printing of barcodes, text and graphics.

• OpenACCESS for easy media and ribbon loading

• Microsoft Windows drivers

Product Specifications


Printer Specifications

Resolution:
203 dpi/8 dots per mm

Memory:
8 MB Flash, 8 MB SDRAM (standard)

Print width:
4.09”/104 mm

Print length:
39”/990 mm

Print speed:
4”/102 mm per second maximum

Media sensors:
Reflective and transmissive sensors


Media Characteristics:
Media width:
1.00”/25.4 mm to 4.25”/108 mm

Media length:
0.38”/9.6 mm to 39”/990 mm

Maximum media roll size:
5”/127 mm O.D. on a 1.00”/25.4 mm, 1.5”/38 mm I.D. core

Media thickness:
0.003”/0.08 mm to 0.007”/0.18 mm

Media types:
• Roll-fed or fan fold

• Label stock (die cut or continous, direct thermal or thermal transfer)

• Tag stock (die cut or continous, direct thermal or thermal transfer)

• Receipt paper (continous, direct thermal)

• Wristband stock (direct thermal or thermal transfer)


Ribbon Characteristics

Outside diameter:
1.34”/34 mm

Standard length:
244’ (74 m)

Ribbon capacity:
1:1 One ribbon per roll of media

Width:
1.33”/33.8 mm to 4.3”/110 mm

Core I.D.:
0.5”/12.7 mm


Operating Characteristics:
Environmental:

• Operating Temp: 40° F/5° C to 105° F/41° C

• Storage Temp: -40° F/-40° C to 140° F/60° C

• Operating Humidity: 10% to 90% non-condensing R.H.

• Storage Humidity: 5% to 95% non-condensing R.H.


Agency Approvals:
TUV-R NRTL, TUV-R CB, NOM, KCC, CE, FCC Class-B


Zebralink Solutions:
Software

• ZebraDesigner Pro—An intuitive, easy-to-use software program for creating complex label designs (option)

• ZebraDesigner—Offers basic features for simple label design

• ZebraDesigner Driver—The most powerful driver available from Zebra

Firmware:

• ZPL II®—Zebra Programming Language provides sophisticated label formatting and printer control.

• EPL2™—Eltron Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications.




Communication and Interface Capabilities:

• Centronics® parallel (36 pin) connector ports

• RS-232 Serial interface

• USB V1.1 interface, bi-directional


Fonts/Graphics/Symbologies:

• 16 resident expandable ZPL fonts

• One resident scalable ZPL font

• 5 resident expandable EPL2 fonts

• Supports user-defined fonts and graphics— including custom logos


Bar Code Symbologies:

• Bar Code Ratios: 2:1 (non-rotated) and 3:1

• Linear Bar Codes: Code 11, Code 39, Code 93,
Code 128A, B & C (User selectable/Auto),
UCC/ EAN-128, Code 128, UPC-A, UPC-E, EAN-8, EAN-13,
EAN-14, UPC-A and UPC-E with EAN 2 or
5 digit extensions, UPC-E with 2 and 5 add on,
Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5,
Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar
(formerly RSS), Postnet (5, 9, 11 & 13 digit) Japanese Postnet,
Plessey (MSI-1), MSI-3, German Post Code, RSS-14
(limited, truncated, stacked).

• 2-Dimensional: PDF417 (MicroPDF-417 and MacroPDF-417),
Code 49, Maxicode, Codablock, Data Matrix, QR code,
and Aztec.


Options and Accessories

• Dispenser—Label peel and present with label present sensor

• KDU and KDU Plus™—Keyboard display units for stand-alone printing applications


Electrical Specifications

• Auto-ranging external power supply with C7 type connector

• Output: 20 VDC, 3.0A

• Input: 100-240 VAC, 50-60 Hz

3 Year's Warranty
