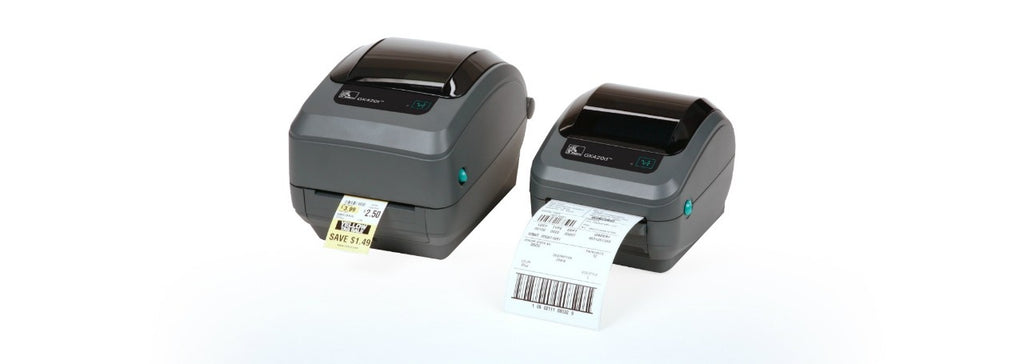

Zebra-GK420 TT PrinterDesktop

Zebra-GK420 TT PrinterDesktop

$650.37 $708.10

SKU: GK42-2022P0-000
MODEL: Zebra-GK420 TT PrinterDesktop
Product Description Advanced, Affordable and Flexible Zebra’s advanced line of desktop printers features professional-quality, reliable printing at a competitive price. The dependable performance and advanced features of the G-Series along with fast print speeds, network manageability and easy-load designs—enable users to improve operational efficiencies, boost profitability and reduce downtime. Product Details...
Quantity
Add to Wishlist

Product Description

Advanced, Affordable and Flexible Zebra’s advanced line of desktop printers features professional-quality, reliable printing at a competitive price. The dependable performance and advanced features of the G-Series along with fast print speeds, network manageability and easy-load designs—enable users to improve operational efficiencies, boost profitability and reduce downtime.

Product Details

The GK printer models are flexible, making them a top choice for a variety of mid-volume and distributed-printing applications. Reliably producing quality text, barcodes or graphics, this advanced line offers three connectivity interfaces and easy upgrades with ZPL® and EPL™ programming languages.

The GK420t offers direct thermal and thermal transfer printing power in a sleek, compact design.


• Print methods: Thermal transfer or direct thermal

• Programming language: EPL™ and ZPL® are
standard construction: Dual-wall frame

• Tool-less printhead and platen replacement

• OpenACCESS™ for easy media loading

• Quick and easy ribbon loading

• Auto-calibration of media

• Triple connectivity: USB, Parallel, Serial

• Certified Microsoft® Windows® drivers

• ENERGY STAR® qualified



Product Specifications

Printer Specifications
Resolution:
203 dpi/8 dots per mm

Memory:
Standard: 4 MB Flash; 8 MB SDRAM

Print Width:
4.09”/104 mm

Maximum Print Length:
39”/991 mm

Maximum Print Speed:
5”/127 mm per second

Media Sensors:
Standard: Fixed reflective and transmissive sensors


Media Characteristics:
Maximum Label and Liner Length
Maximum non-continuous: 39”/991 mm

Maximum Label and Liner Width:
0.75”/19 mm - 4.25”/108 mm

Maximum Media Roll Size:
5”/127 mm O.D.

Media Thickness:
0.003”/0.08 mm to 0.0075”/0.19 mm

Media Types:
Roll-fed or fan-fed, die -cut or continuous direct thermal
labels with or without black line, tag stock, continuous
receipt paper, wristbands

Ribbon Characteristics:
• Outside diameter: 1.36”/35 mm

• Standard length: 244’/74 m

• Ratio: 1:1 media to roll to ribbon

• Width: 1.33”/33.8 mm to 4.3”/109.2 mm

• Core inner diameter: 0.5”/12.7 mm



Operating Characteristics:

Environmental:
• Operating temperature: 40° F/4.4° C to 105° F/41° C

• Storage temperature: -40° F/-40° C to 140° F/60° C

• Operating humidity: 10% to 90% non-condensing

• Storage humidity: 5% to 95% non-condensing

Electrical:
• Auto-detectable (PFC Compliant) 100-240VAV, 50-60Hz

• ENERGY STAR qualified printers


Agency Approvals:
• Emissions: FCC Part 15, Subpart B (Class B),
ICES 003 , VCCI, C-Tick, CQC, EAC, KCC, BSMI,
ICES-003

• Emissions and Susceptibility: EN55022 (Class B),
EN55024, EN61000-3-2, EN61000-3-3

• Safety: CB Scheme IEC 60950-1, TUV NRTL, C-Tick,
CCC, NOM, EAC, KCC, BSMI, BIS


ZebraLink Solutions

Software
• ZebraDesigner™ Pro

• ZebraDesigner

• ZebraNet™ Bridge Enterprise

• ZebraNet Utilities v7.0

• ZebraDesigner Windows® Driver

• ZBI-Developer™

• POS Driver

Networking and Connectivity
Ethernet - 10/100 internal (optional)

Firmware

• EPL2™

• EPL Line Mode (direct thermal only)

• ZPL II®

• Web View

• Alert

• ZBI™

Communication and Interface Capabilities
• RG-Series models triple interface standard

• RS-232 auto-sensing Serial interface, DB-9

• USB V1.1, bi-directional

• Centronics® Parallel

• Ethernet—10/100 internal (optional, replaces Serial
and Parallel ports)




Fonts/Graphics/Symbologies

Fonts and Character Sets:
• 16 resident expandable ZPL II bitmap fonts

• One resident scaleable ZPL font

• Five resident expandable EPL2 fonts

• Native open type font support

• Unicode™ compliant for multi-language,
on-demand thermal printing

Graphic Features
• Supports user-defined fonts and graphics— including custom logos

• ZPL II drawing commands—for boxes and lines

Barcode Symbologies

• Barcode Ratios: 2:1 (non-rotated) and 3:1

• Linear Barcodes: Codabar, Code 11 (ZPL), Code 128,
Code 39, Code 93, Code 93, EAN-13, EAN-8,
EAN-14 (ZPL), German Post Code (EPL),
Industrial 2-of-5 (ZPL), Interleaved 2-of-5,
Japanese Postnet (EPL), ISBT-128 (ZPL),
Logmars (ZPL), MSI, Plessey, Postnet, GS1 DataBar
(RSS-14), Standard 2-of-5 (ZPL), UCC/EAN-128 (EPL),
UPC and EAN
2 or 5 digit extensions (ZPL), UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E, and GS1 Databar (formerly RSS)

• 2-Dimensional: Codablock (ZPL), Code 49 (ZPL),
Data Matrix, MaxiCode, QR Code, PDF417, MicroPDF417,
Aztec (For EPL and ZPL except where noted)


Options and Accessories


• Dispenser—label peel and present with label
present sensor

• ZebraNet 10/100 Print Server—Internal
Ethernet for network communication and printing

• Font Packs—Asian and other international font kits

• ZKDU and KDU Plus keyboard display units for stand-alone printing solutions

• Interface cables and adapters

Manufacturer's Warranty Applies
